1390CM / 150W S Technologies laser CO2



  • - itemNo. 736
  • - Features.

    Laser Power: 150W

    Working Area: 1300X900(mm)

    Electric Up and Down Table (knives and honeycomb)

    Red light location


Category: S Technologies
Product Code: 736

Compatible Software: RUIDA 6442 Board. Ethernet (10/100M) and USB2.0  True color TFT screen Coordinates of the laser head. Preview of drawings saved in memory  Resume engraving after power-down and work-hour preview Leadshine stepper motor

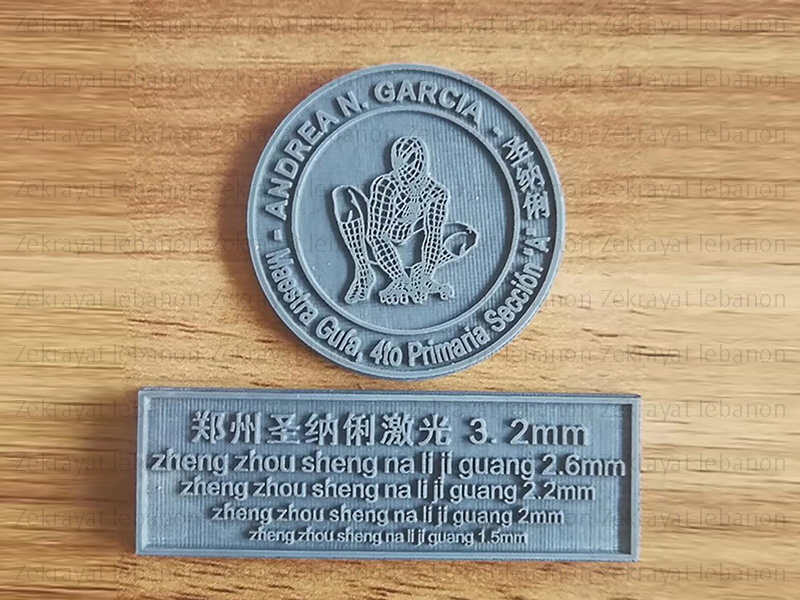

Locating Precision: <0.01mm  Min Shaping Character:3*3mm,letter:2*2mm

Maximum Cutting Depth: 25mm for acrylic & plywood, and 12mm for harder material

Drive Type: Micro Stepping Motor  Machine Size: 220x1320x1100(mm)  Packing Dimensions: 2300x1460x1050(mm)  Total Power: 500W  Voltage: 220V 50HZ/60HZ  N.W.: 220KG  G.W.: 300KG

WARRANTY: One year parts and labor on all manufacturers defect excluding laser tube, lens, mirrors, and damage due to electrical surges
